Pressure swing adsorption (PSA) is a technology used to separate some gas species from mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material.
Product List

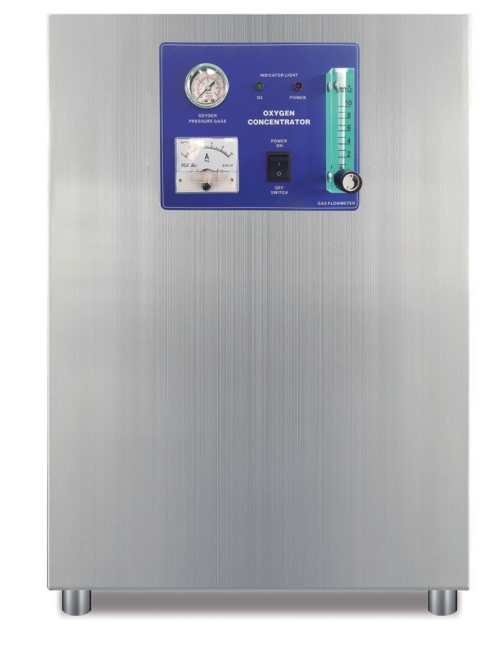

Oxygen generator
-
Description
Pressure swing adsorption (PSA) is a technology used to separate some gas species from mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. it operates at near ambient temperatures and filters significantly from cryogenic distillation techniques of gas separation. specific adsorptive material are used as a trap, preferentially adsorbing the target gas species at high pressure. the process then swings to low pressure to desorb the adsorbed material. PSA generator provide a cost-efficient source of oxygen. they are safer, less expensive, and more convenient as an alternative to tanks of cryogenic oxygen or cylinders.
-
Applications
It can be used in various industries including agricultural, pharmaceutical production, water treatment and glass manufacture, ozone generator gas supply.
-
Technical parameters
Item
Unit
BWY-3L
BWY-5L
BWY-8L
BWY-10L
BWY-15L
Oxygen output
LPM
3
5
8
10
15
Oxygen concentration
%
90%±5%
90%±5%
90%±5%
90%±5%
90%±5%
Air flow rate
LPM
58
75
105
150
180
Dimension
mm
500*400*530
500*400*630
500*400*730
500*400*830
500*400*1350
Weight
kg
24
29
35
38
45
Pressure(inlet)
MPa
0.18-0.22
0.35
Pressure(outlet)
MPa
0.06-0.08
Temperature
℃
Indoor temperature
Relative humidity
%
<70%±10%
Noice
Db
<60
-
Advantages
· Industrial oxygen generator is used in aquaculture, fish farm or feeding oxygen to ozone generator, etc.
· Used with imported oxygen molecular sieve
· With refrigerant dryer and PSA oxygen generator unit, ultra filter, inner oil-less air compressor, etc.
· Under humidity is above 85-90%,refrigeranted dryer is necessary to dry the hot compressed air which pumps into the oxygen bed, to protect the oxygen life time.
-
